# Connections

The Badland 12S 17000mAh battery pack includes one AS150U-F power connector and one Molex Micro-Fit 3.0 balance connector.

{% columns %}
{% column width="16.666666666666664%" valign="middle" %}

<div align="center"><figure><img src="https://content.gitbook.com/content/RwXRyCo3ZLdiOjgpnvtt/blobs/AYzrsLLk87eco9kgc9I3/AS150U-F-vertical.jpg" alt="" width="71"><figcaption></figcaption></figure></div>
{% endcolumn %}

{% column width="83.33333333333334%" %}
**AS150U-F Power Connector**\
*+ on the bottom and - on the top.*\
***Signal positions***\
1\. CANH\
2\. 5V\
3\. GND\
4\. CANL
{% endcolumn %}
{% endcolumns %}

***

{% columns %}
{% column width="16.666666666666664%" %}

<div align="center"><figure><img src="https://content.gitbook.com/content/RwXRyCo3ZLdiOjgpnvtt/blobs/R5oEi90i0hDH9ThD1Xin/Molex-vertical.jpg" alt=""><figcaption></figcaption></figure></div>
{% endcolumn %}

{% column width="83.33333333333334%" %}

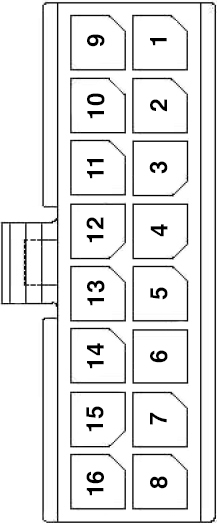

**Molex Micro-Fit 3.0 Balance Connector**\
Pin Description\
1\. Cell 0\
2\. Cell 2\
3\. Cell 4\
4\. Cell 6\
5\. Cell 8\
6\. Cell 10\
7\. Cell 12\
8\. No Connect\
9\. Cell 1\
10\. Cell 3\
11\. Cell 5\
12\. Cell 7\
13\. Cell 9\
14\. Cell 11\
15\. No Connect\
16\. No Connect
