# Technical Specifications

<div align="left"><img src="https://content.gitbook.com/content/RwXRyCo3ZLdiOjgpnvtt/blobs/5pKhWrCLpDah0ZiMZRDN/Dimensions.jpg" alt="" width="563"></div>

## Technical Specifications

| Specifications                                      |
| --------------------------------------------------- |
| Cell Configuration: 12S1P                           |
| Nominal Capacity: 17000mAh                          |
| Nominal Voltage: 45.6V                              |

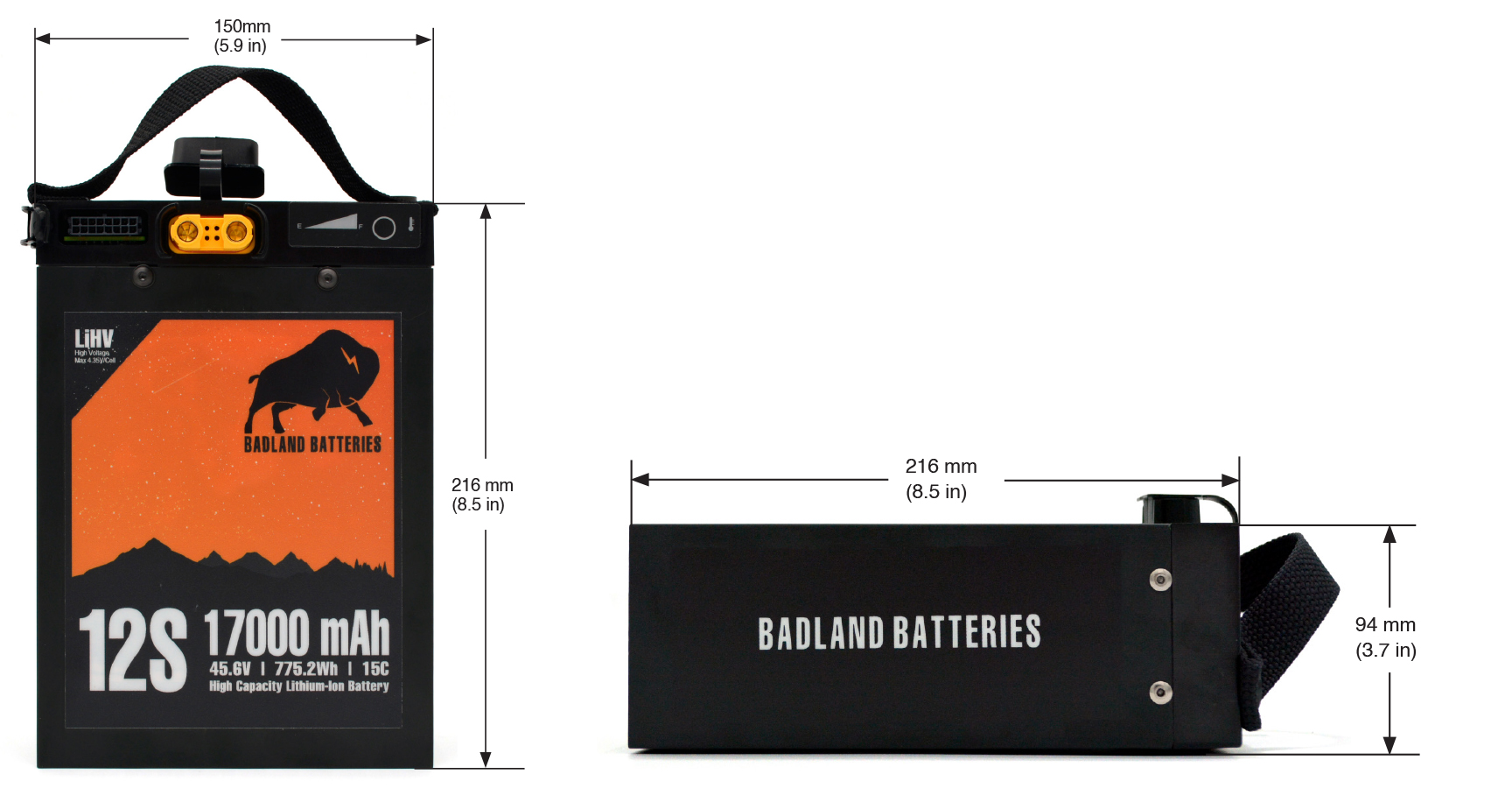

| Width: 150mm (5.9 in.)                              |
| Length: 216mm (8.5 in.)                             |
| Height: 94mm (3.7 in.)                              |
| Weight: 4,300g (9.47 lbs.)                          |
| Power Connector: AS150U-F                           |
| Balance Connector: Molex Micro-Fit 3.0 (0430451601) |
| Communication Protocol: DroneCAN                    |

| Charging Conditions                   |
| ------------------------------------- |
| Standard Current: 17000mA             |
| Standard Current Rate: 1C             |
| Cut-off Pack Voltage: 52.2V           |
| Cut-off Current: 340mA                |
| Cut-off Current Rate: 0.02C           |
| Ending Time: 1.0 hour                 |
| Cut-off Cell Voltage: 4.35V           |
| Max. Charge Current: 34000mA          |
| Max. Charge Current Rate: 2C          |
| Min. Charge Temperature: 10°C (50°F)  |
| Max. Charge Temperature: 65°C (149°F) |

| Discharging Conditions                   |
| ---------------------------------------- |
| Standard Current: 17000mA                |
| Standard Current Rate: 1C                |
| Cut-off Pack Voltage: 36.0V              |
| Cut-off Cell Voltage: 3.0V               |
| Continuous Current: 136000mA             |
| Continuous Current Rate: 8C              |
| Burst Current: 255000mA                  |
| Burst Current Rate: 15C                  |
| Burst Duration: <3 seconds               |
| Min. Discharge Temperature: -20°C (-4°F) |
| Max. Discharge Temperature: 60°C (140°F) |

| Storage Conditions                     |
| -------------------------------------- |
| Voltage: 45.6V                         |
| <1 month: -20 - 45°C (-4° - 113°F)     |
| <3 months: -20 - 30°C (-4° - 86°F)     |
| <12 months: 22 - 28°C (71.6° - 82.4°F) |
